NexGen™ Mouse 500
Introducing the NexGen IVC system. Our goal in bringing the NexGen to market was to ensure it is the lightest, most cost-effective, easiest-to-use animalfriendly IVC system in the LAS industry.
- 77.5 in² / 500 cm² for mouse housing
- Smooth sliding, easy gliding cage docking / undocking
- Low vibration spares animals and staff from discomfort
- Observation made easier and faster
Specifications
Components

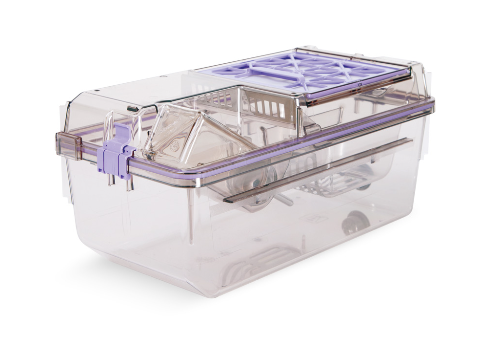

Standard Cage System with External Bottle Top
7.625 in x 7.110 in x 15.680 in
194 mm x 181 mm x 398 mm
Floor space: 77.5 in² | 500 cm²

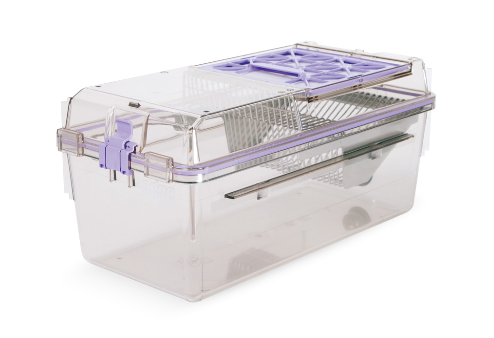

Edge Cage System with Micro Barrier Top
7.625 in x 7.020 in x 15.638 in
193 mm x 178 mm x 397 mm
Floor space: 83 in² | 535 cm²
Bottle
250 mL
.62 lbs | 281 g (filled)
Item # PC250BCL+SLC
Top

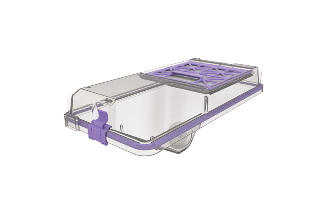

External Bottle Top
Available with or without locks
7.625 in x 4.474 in x 15.638 in | 1.30 lbs
194 mm x 114 mm x 397 mm | 590 g
Item #: 228652-5

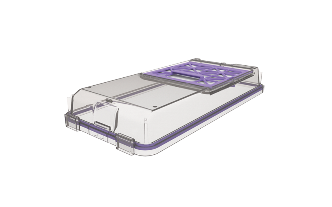

Micro Barrier Top
Available with or without locks
7.625 in x 2.150 in x 15.680 in | 1.20 lbs
194 mm x 55 mm x 398 mm | 544 g
Item #: 228655-5

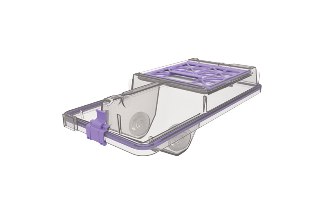

Dual External Bottle Top
Available with or without locks
7.625 in x 4.474 in x 15.680 in | 1.45 lbs
194 mm x 114 mm x 398 mm | 658 g
Item #: 228843-2

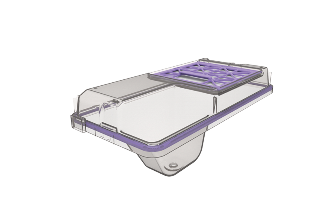

External Hydropac® Top
Available with or without locks
7.625 in x 4.984 in x 15.638 in | 1.35 lbs
194 mm x 127 mm x 397 mm | 612 g
Item #: 228682-1
WBL / Feeder

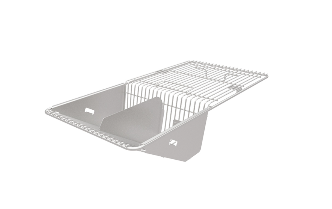

Wire Bar Lid
Food capacity: 426 g
7.000 in x 2.909 in x 14.750 in | 1.10 lbs
178 mm x 74 mm x 375 mm | 499 g
Item #: 412483

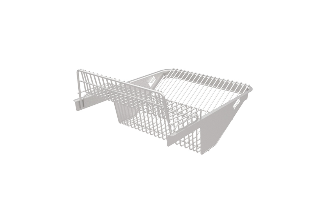

Half Pocket Wire Bar Lid
Food capacity: 599 g
6.986 in x 4.459 in x 8.750 in | .80 lbs
177 mm x 113 mm x 222 mm | 363 g
Item #: 314677
Dual PFT with Stainless Steel Grate
Food capacity: 848 g
7.026 in x 4.563 in x 8.664 in | .60 lbs
178 mm x 116 mm x 220 mm | 272 g
Item #: 225663-1

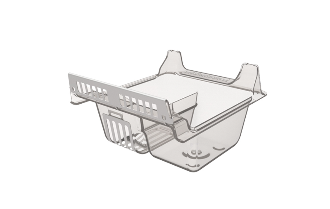

Single PFT with Stainless Steel Grate (Hydropac®)
Food capacity: 426 g
7.026 in x 4.563 in x 8.664 in | .60 lbs
178 mm x 116 mm x 220 mm | 272 g
Item #: 225664-1
Cage

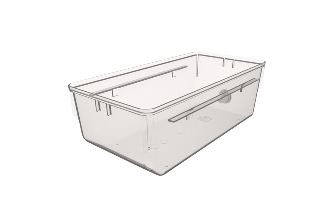

Standard Cage
7.620 in x 5.130 in x 15.010 in | 1.40 lbs
194 mm x 130 mm x 381 mm | 635 g
Item # 223581-4 (without automatic watering)
Item # 223581-2 (with automatic watering)

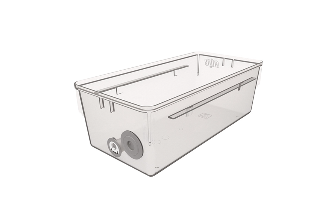

Edge Cage
7.620 in x 5.130 in x 15.010 in | 1.35 lbs
194 mm x 130 mm x 381 mm | 612 g
Item # 223580-4 (without automatic watering)
Item # 223580-2 (with automatic watering )
