NexGen™ MAX™
The lightest, most cost-effective, easiest-to-use animal-friendly IVC system in the LAS industry, now providing up to 20% more cage capacity in the same rack footprint.
- 20% greater cage density within same rack footprint
- Smooth sliding, easy gliding cage docking / undocking
- Low vibration spares animals and staff from discomfort
- Observation made easier and faster
Components

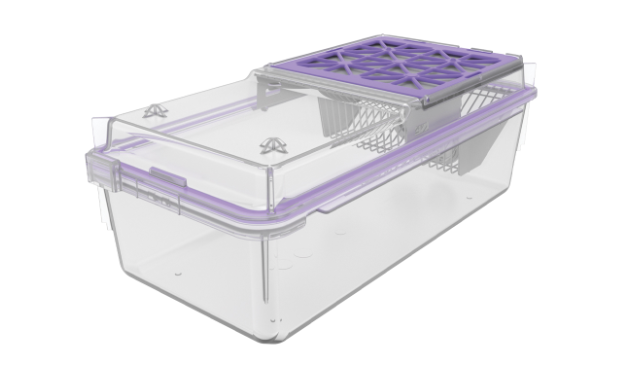

Cage System with External Bottle Top
7.638 in x 5.669 in x 15.669 in
194 mm x 144 mm x 398 mm
Floor space: 81 in² | 523 cm²

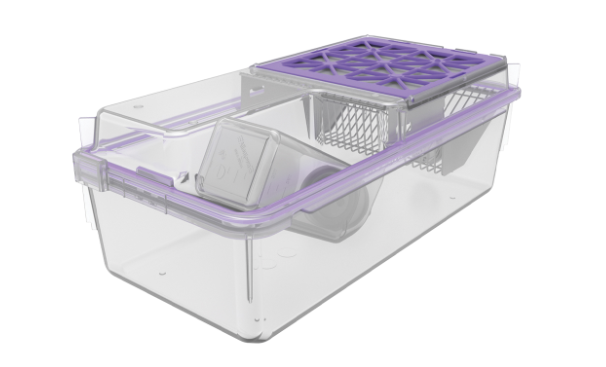

Cage System with Micro Barrier Top
7.638 in x 5.669 in x 15.669 in
194 mm x 144 mm x 398 mm
Floor space: 81 in² | 523 cm²
Bottle
250 mL
.62 lbs | 281 g (filled)
Item # PC250BCL + SLC250-200-NW¹
Top

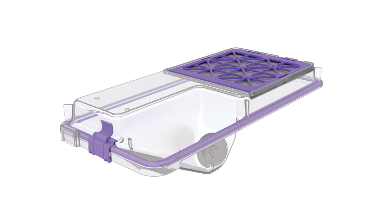

External Bottle Top
Available with or without locks
7.313 in x 4.173 in x 15.669 in | .95 lbs
186 mm x 106 mm x 398 mm | 431 g
Item # 232740-2

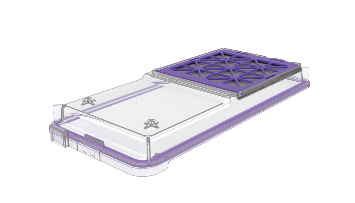

Micro Barrier Top
Available with or without locks
7.313 in x 2.087 in x 15.680 in | 1.20 lbs
186 mm x 53 mm x 398 mm | 544 g
Item # 232743-1
WBL / Feeder
Half Pocket Wire Bar Lid
Food capacity: 376 g
6.683 in x 3.415 in x 8.328 in | .46 lbs
170 mm x 87 mm x 212 mm | 209 g
Item # 317274

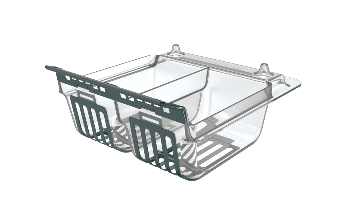

Dual PFT with Stainless Steel Grate
Food capacity: 853 g
6.683 in x 3.338 in x 8.330 in | .45 lbs
170 mm x 85 mm x 212 mm | 204 g
Item # 230763-1

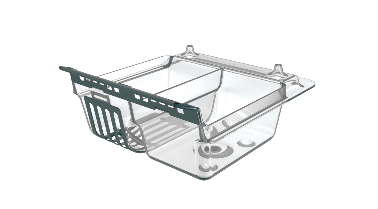

Single PFT with Stainless Steel Grate (Hydropac®²)
Food capacity: 426 g
6.683 in x 3.338 in x 8.259 in | .45 lbs
170 mm x 85 mm x 210 mm | 204 g
Item # 230764-1
Cage

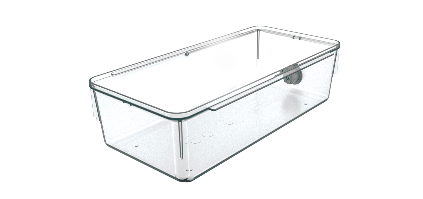

NexGen MAX Cage
Automatic watering available
7.638 in x 4.173 in x 15.000 in | 1.21 lbs
194 mm x 106 mm x 381 mm | 549 g
Item # 232822-1 (without automatic watering)
Item # 232822-2 (with automatic watering)
